  • rgb

Feature

  • Attractive LED Decorating Design on Front Panel
  • Front Panel with Metal Mesh Achieves Better Ventilation Efficiency
  • Large Area Carbon Fiber Design Presents High Quality
  • USB Control Panel and Power Button on Top for User-friendly
  • 2 Different Structure Types Available

Introduction

Specification

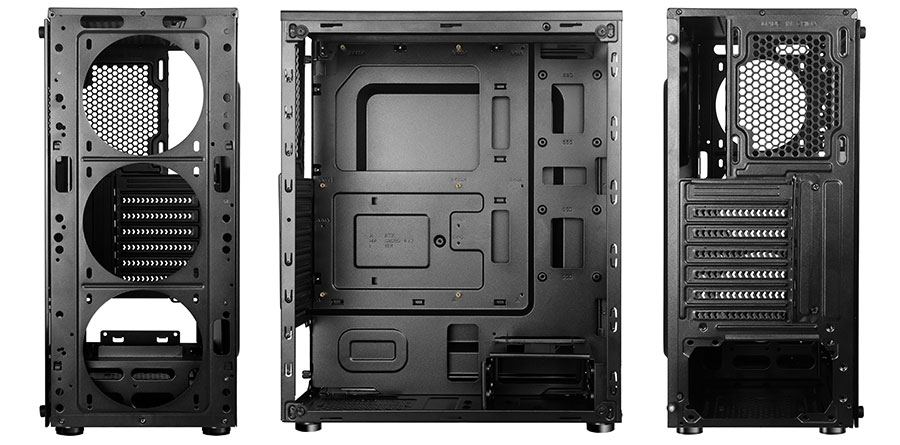

04A-1

Type ATX Case
Drive Bay : 5.25" X
Drive Bay : 3.5" 1
Drive Bay : 2.5" 3
MOTHERBOARD ATX / MICRO ATX
POWER SUPPLY ATX PS/2, Bottom Mount
EXPANSION SLOT 7 slots
STRUCTURE DIMENSION 342x185x413mm
FAN CAPACITY : FRONT 3x12cm
FAN CAPACITY : Rear 1x12cm
FAN CAPACITY : Top 2x12cm
MAX. CPU COOLER HEIGHT 165mm
MAX. VGA CARD LENGTH 280mm
Measurement 1370PCS / 40'HQ

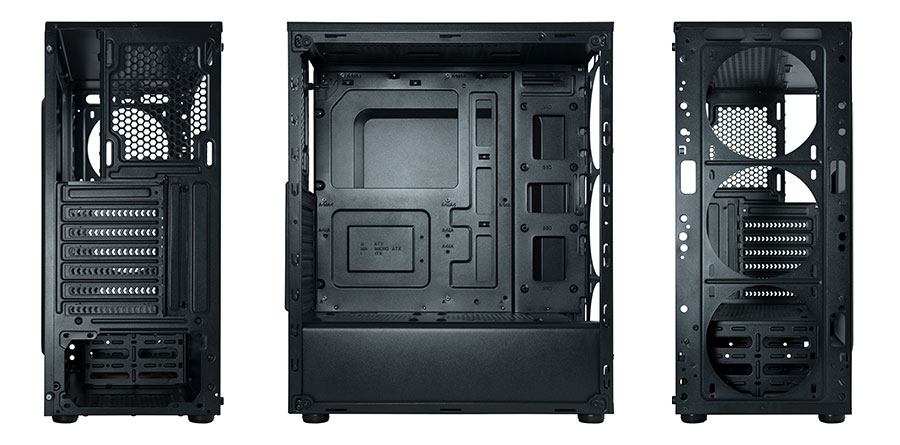

04A-2

Type ATX Case
DRIVE BAY : 5.25" X
DRIVE BAY : 3.5" 2
DRIVE BAY : 2.5" 2
MOTHERBOARD ATX / MICRO ATX
POWER SUPPLY ATX PS/2, Bottom Mount
EXPANSION SLOT 7 slots
Structure Dimension 342x185x413mm
FAN CAPACITY : FRONT 3x12cm
FAN CAPACITY : Rear 1x12cm
FAN CAPACITY : Top 2x12cm
MAX. CPU COOLER HEIGHT 165mm
MAX. VGA CARD LENGTH 280mm
MEASUREMENT 1370PCS / 40'HQ
