DA VINCI

DA07A

  • black
  • black

Feature

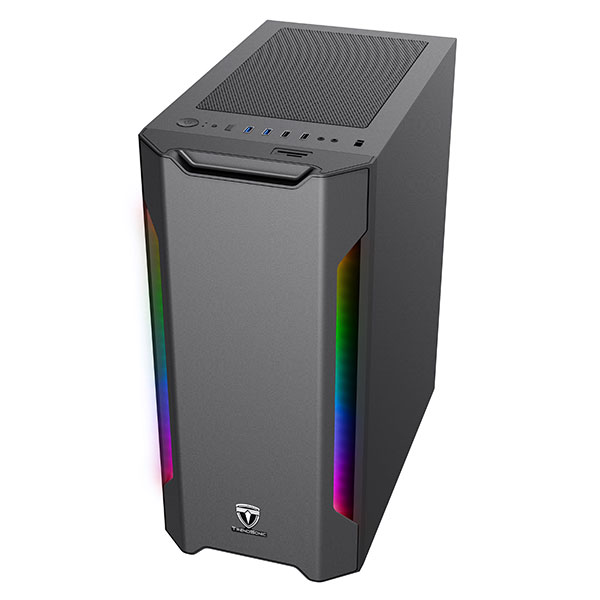

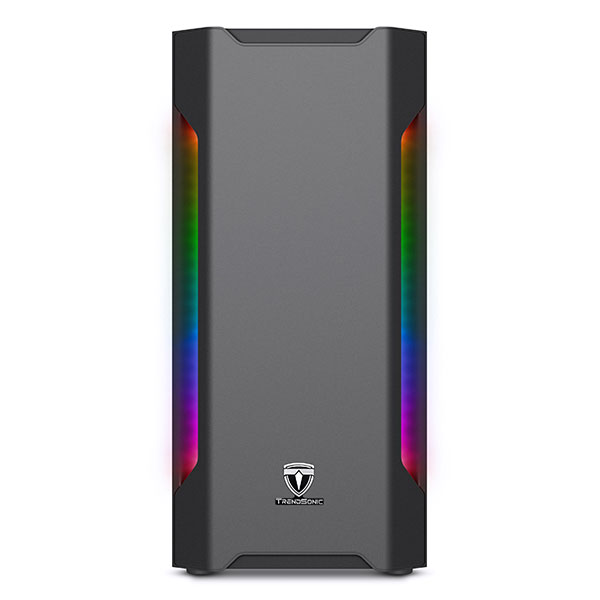

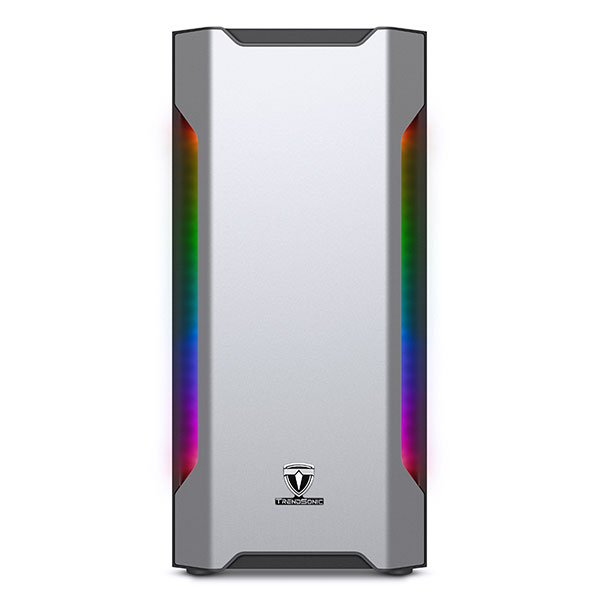

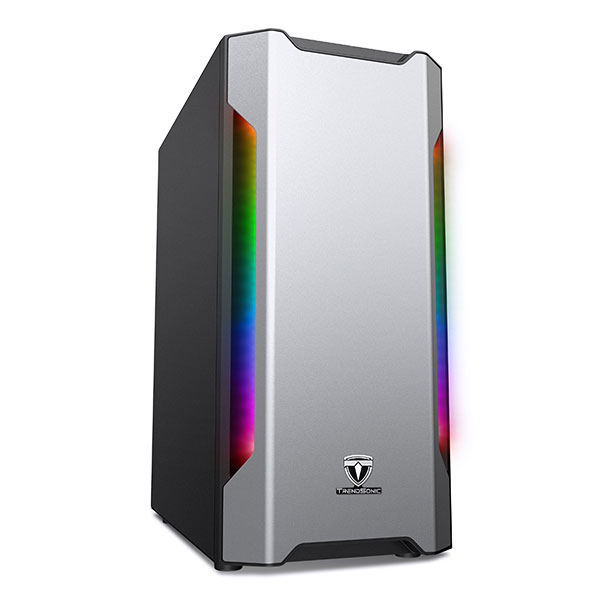

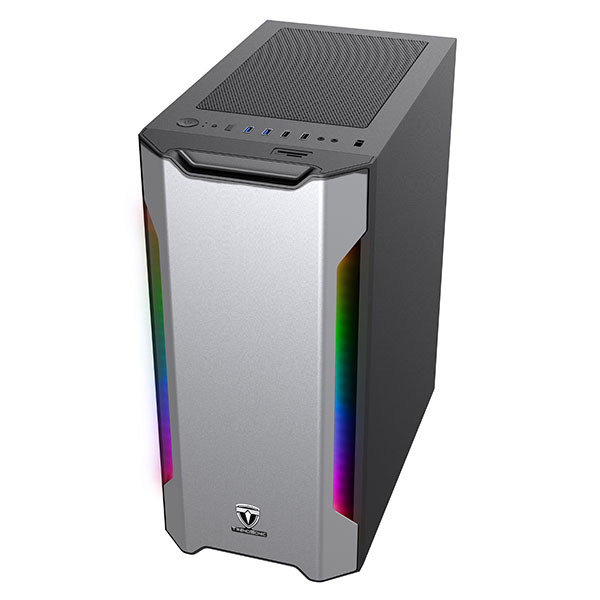

  • Elegant Aluminum Front Panel Presents High Quality
  • Attractive RGB LED Design on Two Sides of Front Panel
  • Ventilation Holes on Two Sides for the Best Ventilation
  • USB Control Panel and Power Button on Top for User-friendly
  • Additional Exclusive LED Button for Switching RGB Fan Color Easily
  • Optional SD/TF Card Reader

Introduction

Specification

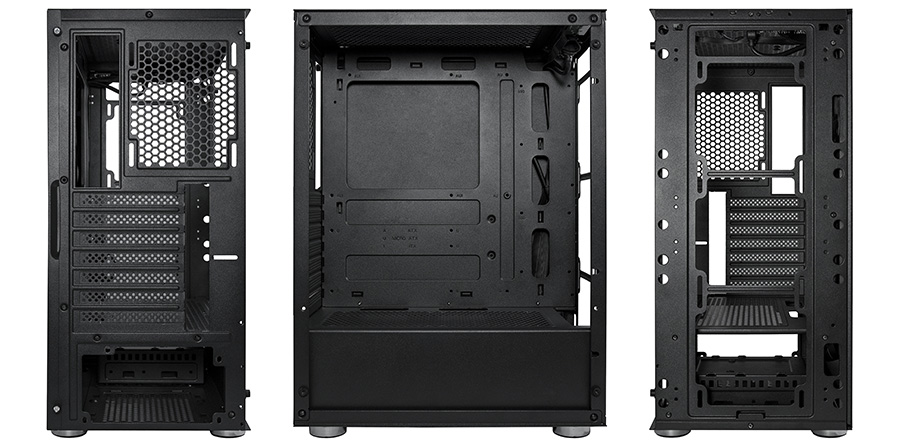

07A-1

Type ATX Case
Drive Space : 5.25" 0
Drive Space : 3.5" 2
Drive Space : 2.5" 2
Main Board ATX
Power Supply PSII
Expansion Slot 7 slots
Structure Dimension 330x210x440mm
Fan Capacity Front 3x12cm
Fan Capacity Rear 1x12cm
Fan Capacity Top 2x12cm
Fan Capacity Bottom 2x12cm
Support VGA Card Length 300mm
Support CPU Cooler 160mm

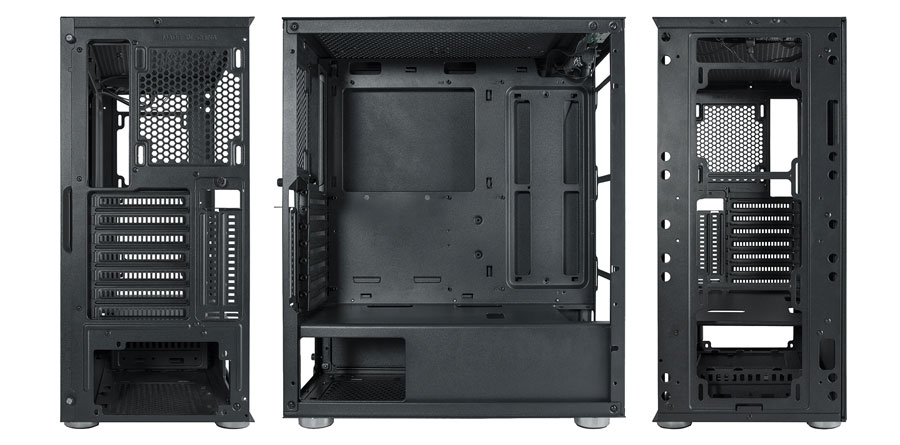

07A-2

Type ATX Case
Drive Space : 5.25" 0
Drive Space : 3.5" 2
Drive Space : 2.5" 2
Main Board E-ATX
Power Supply PSII
Expansion Slot 7 slots + 2 (Vertical)
Structure Dimension 380x210x440mm
Fan Capacity Front 3x12cm
Fan Capacity Rear 1x12cm
Fan Capacity Top 2x12cm or 2x14cm
Fan Capacity Bottom 2x12cm
Support VGA Card Length 350mm
Support CPU Cooler 160mm
