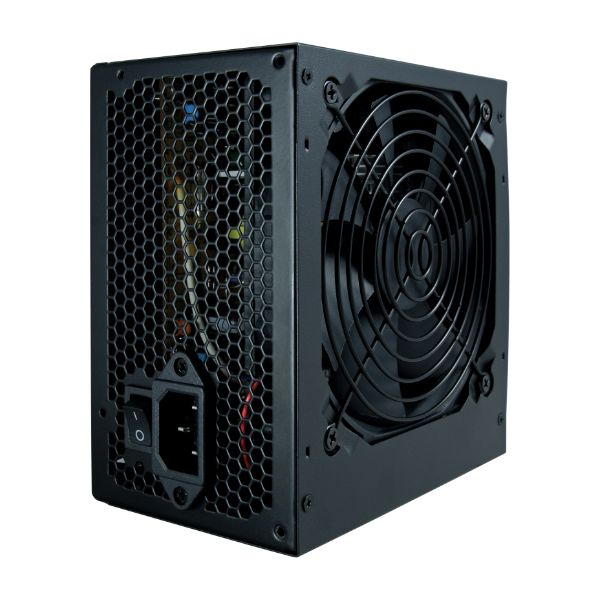

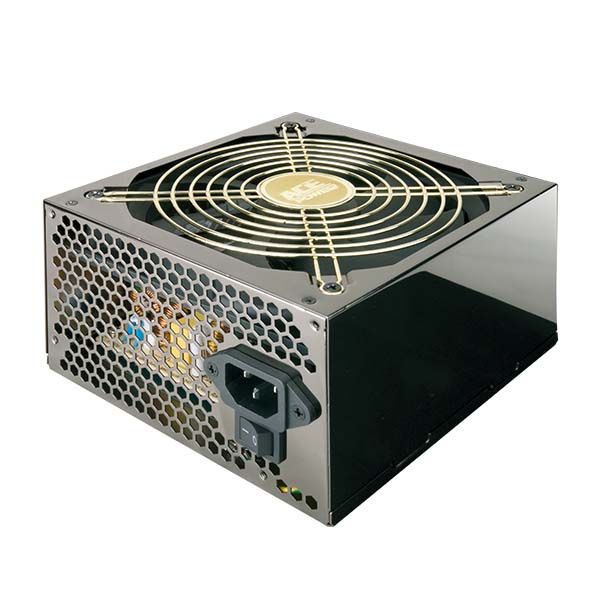

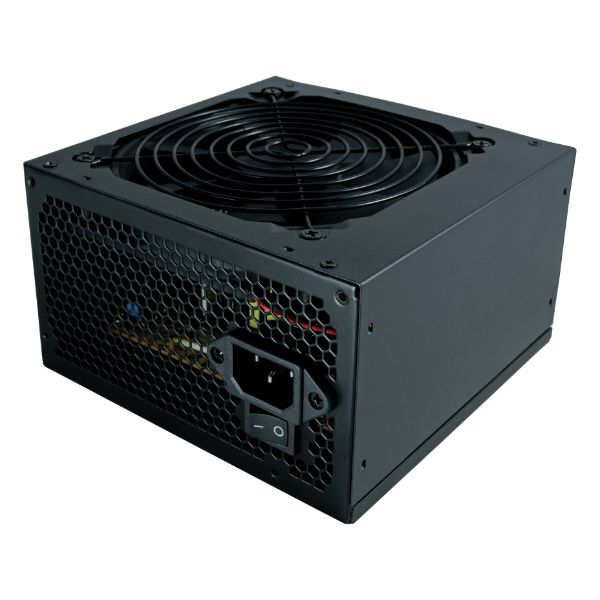

ACE POWER 80+ Certified
80+
Feature
- Compliant with Universal Input
Automatically adjusts for 100V – 240V power grids - Active Power Factor Correction (APFC)
Higher than 0.99 power factor helps reduce electrical waste - Fully Protection
OCP / OLP / OPP / OTP / OVP / SCP / UVP - Ultra-silent Operation
Intelligent fan speed control lower noise - Power Output
Provide full range green power from 350W to 1000W - Support the Newest SSI Standard
Specification
MODEL | +3.3V | +5V | +12V | -12V | +5VSB | TOTAL POWER | RATING |
---|---|---|---|---|---|---|---|
FP-350W | 15A | 15A | 21A | 0.3A | 2.5A | 350W | ![]() |
FP-400W | 15A | 15A | 25A | 0.3A | 2.5A | 400W | ![]() |
FP-450W | 15A | 15A | 29A | 0.3A | 2.5A | 450W | ![]() |
FP-550W | 15A | 15A | 37.5A | 0.3A | 2.5A | 550W | ![]() |
FP-650W | 15A | 15A | 42A | 0.3A | 2.5A | 600W | ![]() |
FP-750W | 18A | 18A | 54A | 0.3A | 2.5A | 750W | ![]() |
FP-1000W | 18A | 18A | 75A | 0.3A | 2.5A | 1000W | ![]() |
FP-550 | 15A | 15A | 38A | 0.3A | 2.5A | 550W | ![]() |
FP-650 | 15A | 15A | 46A | 0.3A | 2.5A | 650W | ![]() |
FP-850W | 15A | 15A | 63A | 0.3A | 2.5A | 850W | ![]() |
FP-1000 | 15A | 15A | 75A | 0.3A | 2.5A | 1000W | ![]() |
Cable
![CPU-4pin](images/80plus/cable/CPU-4pin.jpg)
![EPS-8pin](images/80plus/cable/EPS-8pin.jpg)
![Floppy-4pin](images/80plus/cable/Floppy-4pin.jpg)
![MB-20+4pin](images/80plus/cable/MB-20-4pin.jpg)
![PCi-E-6+2pin](images/80plus/cable/PCi-E-6-2pin.jpg)
![PCI-E-6pin](images/80plus/cable/PCI-E-6pin.jpg)
![Peripheral-4pin](images/80plus/cable/Peripheral-4pin.jpg)
![SATA](images/80plus/cable/SATA.jpg)
Safety certification
![safety](images/80plus/safety.jpg)
