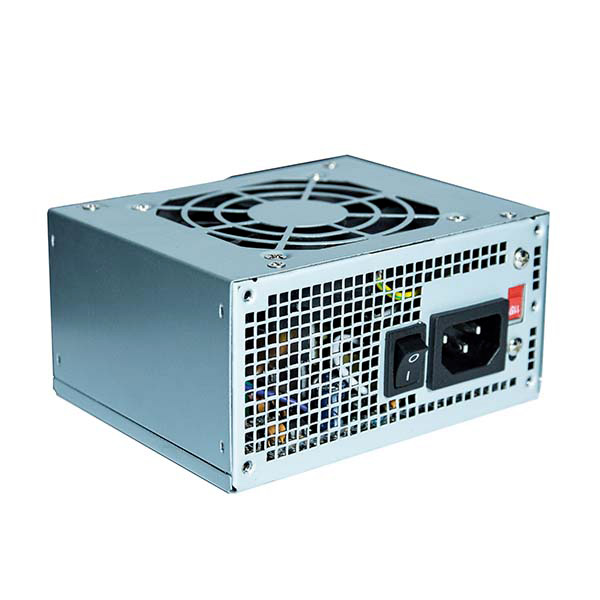

SFX Power Supply
Feature
- ower Output Range
Provide output option from 200W to 350W - Fully Protection
OCP / OLP / OPP / OTP / OVP / SCP / UVP
Specification
| AC INPUT \ DC OUTPUT | +12V1 | +12V2 | +5V | +3.3V | -12V | +5VSB | RATED POWER |
|---|---|---|---|---|---|---|---|
| 100-240V 6-10A 47-63Hz |
11A | / | 8A | 7A | 0.5A | 1.8A | 200W |
| 132W | 63W | 6W | 9W | ||||
| 13A | / | 8A | 7A | 0.5A | 2A | 230W | |
| 156W | 63W | 6W | 10W | ||||
| 14A | / | 9A | 8A | 0.5A | 2A | 250W | |
| 168W | 71W | 6W | 10W | ||||
| 17A | / | 10A | 10A | 0.5A | 2A | 300W | |
| 204W | 83W | 6W | 10W | ||||
| 10A | 11A | 10A | 10A | 0.5A | 2A | 350W | |
| 252W | 83W | 6W | 10W | ||||
Cable
Safety certification
